SKU:MLE03715

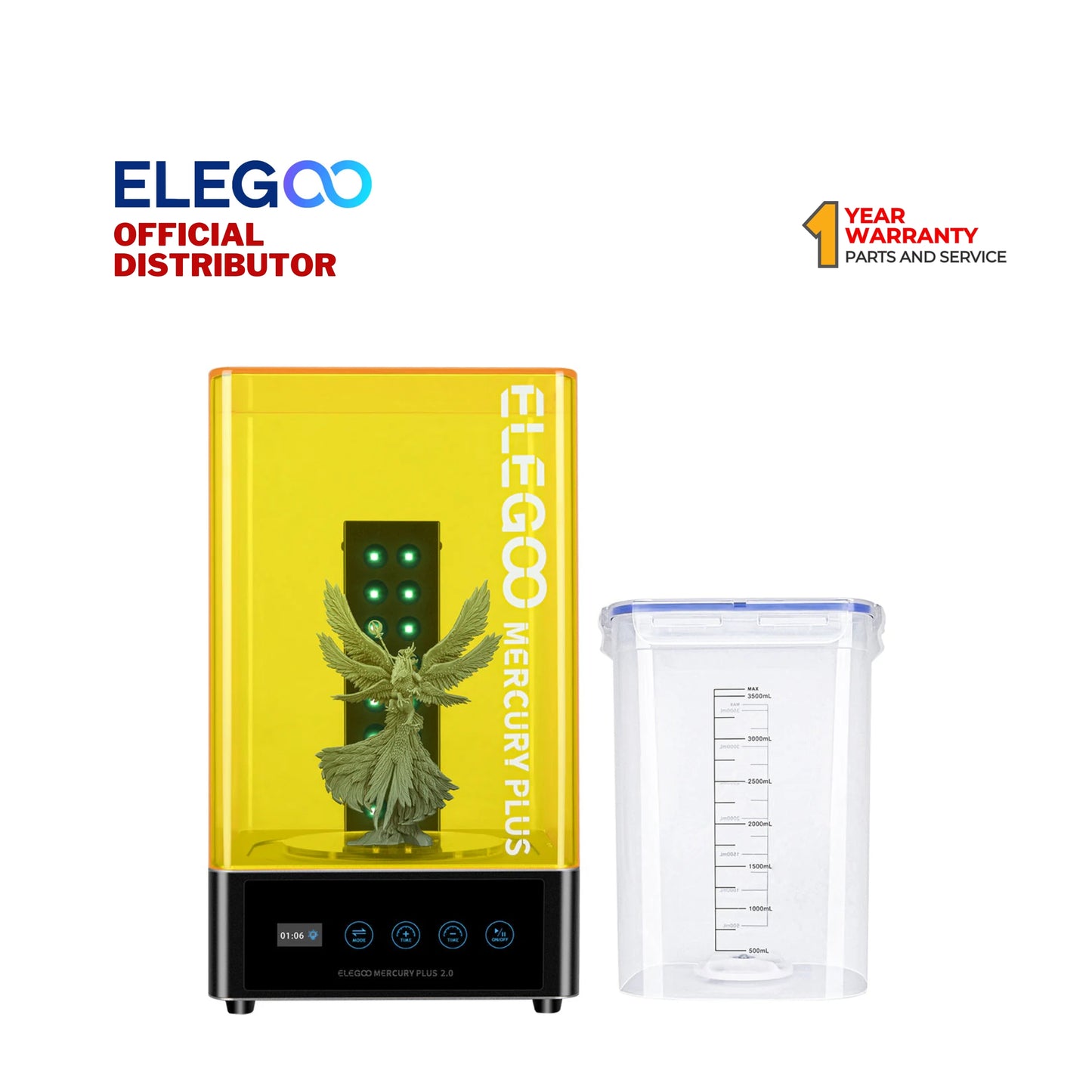

Elegoo Mercury Plus Wash and Cure V2.0
Couldn't load pickup availability
Share
About the Product
Main Features:
- [Upgrade Protection Function] Sealed washing to prevent the volatilization of alcohol during the cleaning process . Fan-less curing mode makes it quieter to use. The anti-UV lid can block 99.95% of ultraviolet rays to protect your eyes.
- [Intelligent Curing and Washing] The front TFT screen can directly display the setting time and remaining time, and the operation is simple and intuitive. With built-in 16 pcs of 405nm UV LED and a 360-degree rotating turntable, you can uniformly cure the model.
- [Flexible Washing Mode] The models can be placed in a cleaning basket to be cleaned separately, or mount the build plate with models on it and wash them together, which can avoid direct contact with the uncured resin. The height of the platform bracket can be adjusted to fit the liquid level in the bucket.
- [Ideal Compatibility] Compatible with most of the LCD/DLP/SLA 3D printers like ELEGOO Mars, Mars Pro, Mars C, Photon, Photon s etc, which provides you an ideal support for washing and curing your 3D resin prints.
- [Special Notes] The washing function is not quite suitable for 3D models printed with water washable resin, which is better to be washed with running water.
Technical Specifications:
- Control Method: Touch button
- Rated Power: 48W
- Input Voltage: 100V/240V 50/60Hz
- UV Light: 405nm(8+8)
- Time Setting: 0-30mins
- Machine Size: 200mm*200mm*352mm
- Maximum Curing Size: φ140*165mm
- Maximum Wash Volume:
- Machine Net Weight: 3.8kg
ELEGOO MERCURY PLUS 2 IN 1 WASHING AND CURING STATION 2.0
With dual function of washing and curing integrated in 1 machine,it could greatly saves your desktop space. The sealed washing function is now added, which can effectively block the volatilization of alcohol during the washing process, and protect your health.
Fan-less design of curing mode reduces the noise level giving you a more pleasant experience.
ELEGOO Washing and Curing Machine 2.0
● Security upgraded
Sealed washing prevents the volatilization of alcohol during the washing process and protects your health. The anti-UV lid can block 99.95% of ultraviolet rays to protect your eyes.
● Less noise when curing
Fan-less design makes sure there are less noise even during the curing process so you focus more on the output.
● 360° all-round curing
360-degree rotating turntable, you can quickly cure every detail of the model and make the model perfect.
● Powerful curing mode
Powerful UV Light of the built-in 16pcs 405nm a UV curing lamp beads to cure the model fast.
● Intelligent operation mode
Touch the button, you can see the setting time and remaining time, and the machine will beep when the curing is completed, saving time and effort.
Flexible cleaning method
● Wash with platform
If the printed model is not removed from the build platform, please install the build platform on the adjustable platform support (the height of the platform support can be adjusted to fit the liquid level in the bucket, the maximum model height is 120 mm), and then adjust the platform bracket to hang on the top of the pillar to start cleaning.
● Wash with bucket
If the printed model has been removed from the build platform, you need to put the model in the cleaning basket (maximum height of the model is 160 mm) and hang the cleaning basket on the top of the pillar to start cleaning the model. Models larger than 15 mm in size can use this cleaning option. Some small models can be cleaned together in a bucket.
