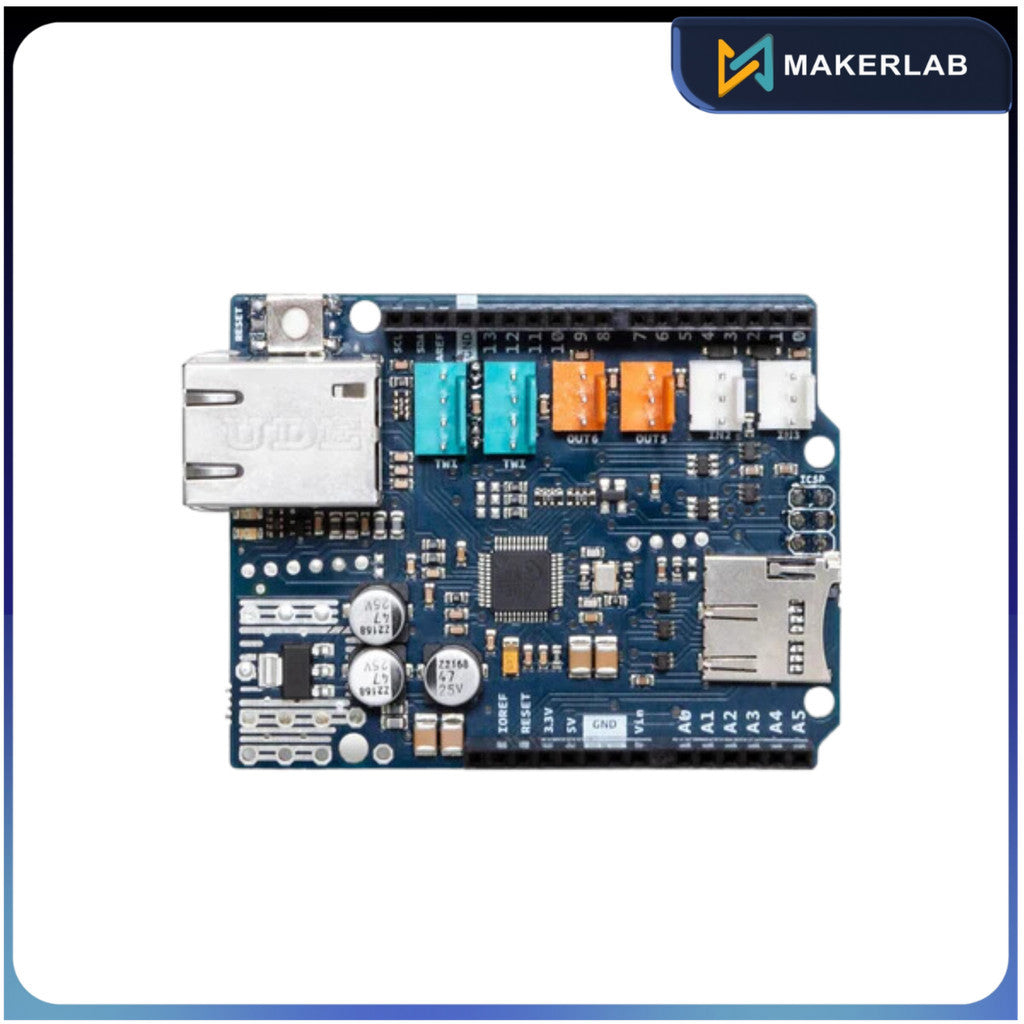

Arduino Ethernet Shield 2 A000024
Share
About the Product
Description
The module is an extension for moduleArduino that connect to Ethernet network. The service is simplified by the library together with intuitive documentation and numerous examples. Shield is also a reader of microSD memory cards, which allows to store more data.
Specification
Working voltage: 5 V (powered from Arduino pins)
Ethernet controller: W5500 with buffer of 32 KB
Data transfer rate: 10/100 MB
Communication: SPI bus
Built-in microSD memory card reader
Available from the level of a standard SD Card library
Pin SS of the SPI bus is at the pin no. 4
Built-in RJ45 connector
The possibility to connect the module PoE- power over Ethernet
The module has the following status LEDs:
ON - signals the proper powering
LINK - indicates a connection to the network
FDX - indicates the connection in full duplex mode
100M - indicates the communication with the speed of 100 Mbit/s
ACT - flashes when using pins RX and TX
Led out RESET button of the Arduino
Shield is compatible withArduino UnoandMega(does not support Arduino Zero Pro M0)
