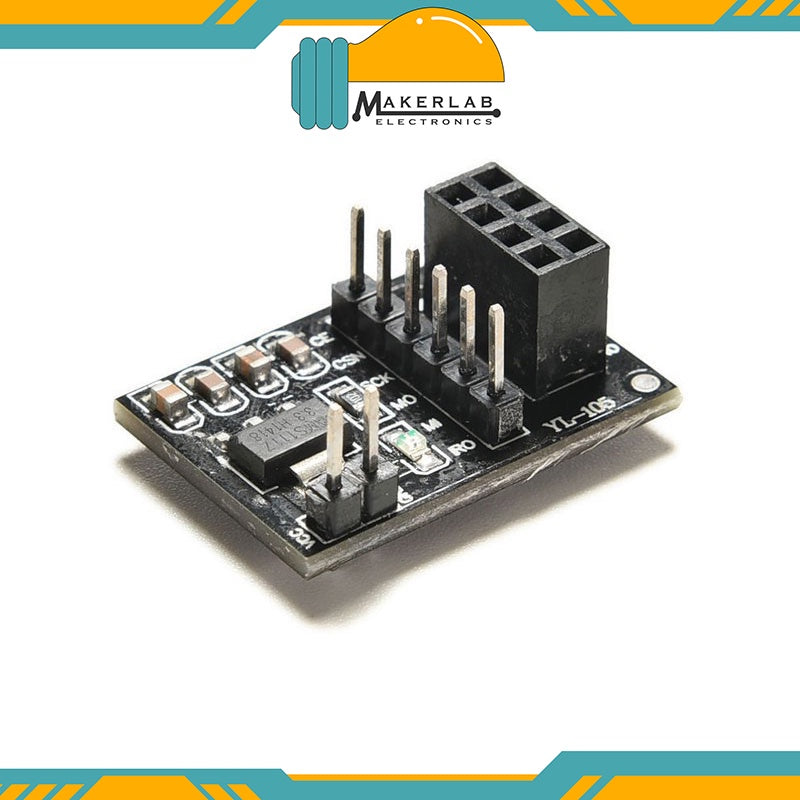

5V-3.3V VCC Adapter Board for NRF24L01 Wireless Module

This 5V-3.3V VCC Adapter Board for NRF24L01 Wireless Module enables you to use NRF24l01 type transceivers on 5V systems like Arduino.

It regulates the 5V input to 1.9~3.6V DC and incorporates bypass capacitors for reliable operation. The NRF24L01 utilizes Enhanced ShockBurst (ESB) protocol to support two-way data packet communication with packet buffering, packet acknowledgement and automatic re-transmission of lost packets.

Features:

Wireless module operating voltage is generally 3.3v, while the ordinary 51 microcontroller 5v.
This module is easy to shop wireless module with 51 single system board used in conjunction.
This module can be any one of 51 shop is directly connected to the system board, easy to use.
On-board AMS1117-3.3 chip.
It could be used with NRF24L01 Wireless module at our store.
Specification:

Input Voltage: 5V DC
Output Voltage: 1.9~3.6 DC
Current: 12.3 mA
It’s for 8 Pin NRF24L01+ Module
A simple socket board which is for NRF24L01 wireless module
On-board AMS1117-3.3 chip
It can be used with NRF24L01 wireless module
Dimension: 26 x 19 x 12mm
