SKU:MLE00437
Stepper Motor Driver DQ860MA 7.8A
₱3,000.00
₱3,000.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Or 3 months for only ₱1,000 with
. Learn More.
. Learn More.
Only 6 units left
Couldn't load pickup availability
About the Product

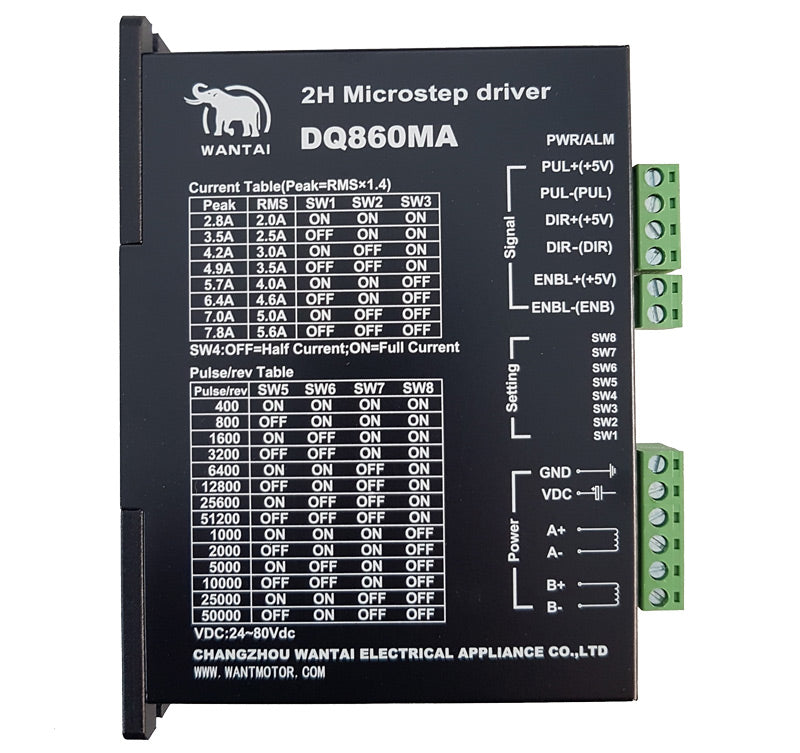

Stepper Motor Driver 7.8A DQ860MA
Our stepper motor driver DQ860MA is a two-phase hybrid stepper driver. It is designed to be use for 2-phase hybrid stepper motors with 57mm to 110mm outside diameter and less than 7.8A phase current.
The circuit that it adopts is smiliar to the circuit of a servo controller which enables the motor to run smoothly almost without noise and vibration.
It is widely used in middle and big size numerical control devices such as curving machine,
CNC machine, computer embroider machine, packing machines and etc.
Technical Specification
| Input Voltage: | 28-80VDC |
| Input Current: | <6A |
| Output Current: | 2.8A ~ 7.8A |
| Power Consumption: | 80W |
| Internal Protection: | 10A |
| Working Temperature: | -10°C ~ 45°C |
| Storage temperature: | -40°C ~ 70°C |
| Weight: | 600 grams |
For Further Information, please visit this link
