RS485 to TTL MAX485 Module

₱50.00
₱50.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
In stock

About the Product

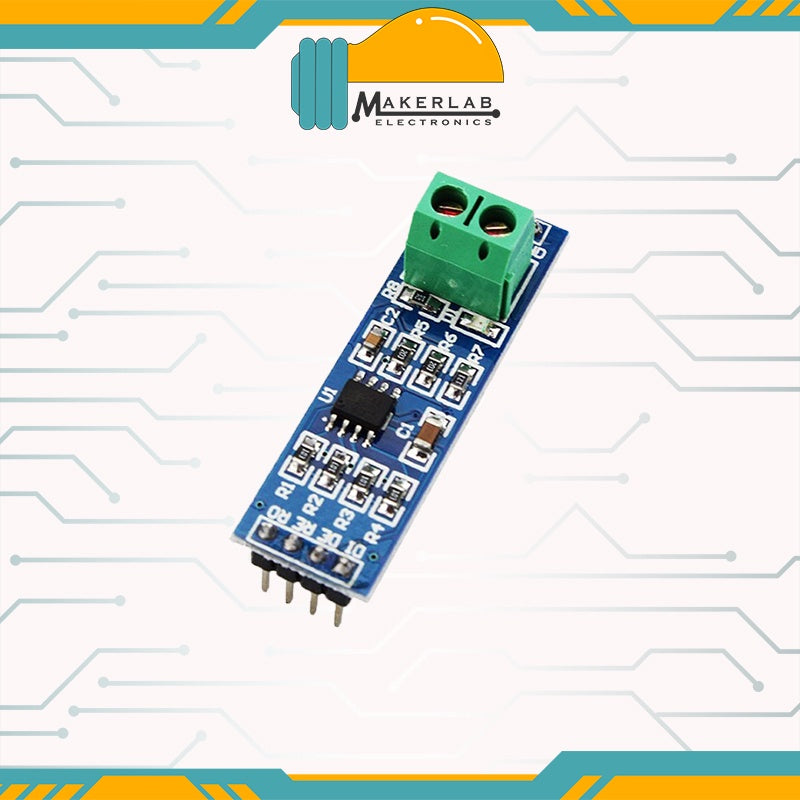

RS485 to TTL MAX485 Module

RS485 to TTL MAX485 Module converts TTL signal to RS485 for long range, high data rate error prone differential communication. Digital communications networks implementing the EIA-485 standard can be used effectively over long distances and in electrically noisy environments. Multiple receivers may be connected to such a network in a linear, multi-drop configuration. These characteristics make such networks useful in industrial environments and similar applications.

Specifications:

  • Features MAX485 chipset
  • Working Voltage: 5V
  • 5.08mm (0.2?) pitch, 2-pin terminals for RS-485 easy communication and wiring
  • 4-pin 2.54mm (0.1?) pitch headers for RS485 and Power
  • 4-pin 2.54mm (0.1?) pitch headers for DI,DE,RE,RD signals
  • PCB Board Size: 44 x 14mm
