Pulse Sensor

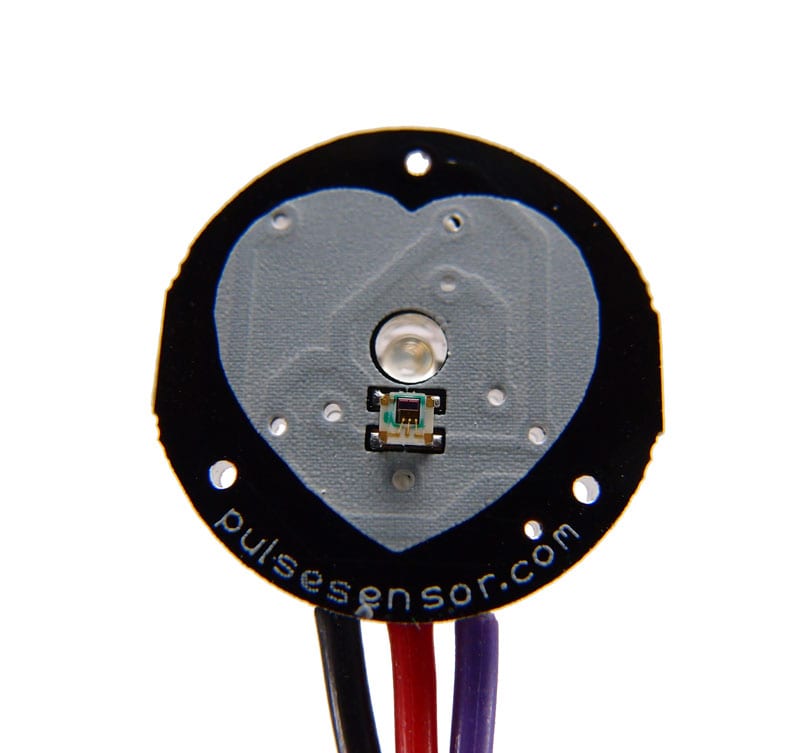

The Pulse Sensor Amped is a plug-and-play heart-rate sensor for Arduino. It essentially combines a simple optical heart rate sensor with amplification and noise cancellation circuitry making it fast and easy to get reliable pulse readings.

Simply clip the sensor to your earlobe or finger tip and plug it into your 3 or 5 Volt Arduino and you’re ready to read heart rate! The 24" cable on the sensor is terminated with standard male headers so there’s no soldering required. Of course Arduino example code is available as well as a Processing sketch for visualizing heart rate data.

Dimensions: 0.625" Diameter and 0.125" Thick

Kit Includes:

• Sensor Board
• 24-inch Color-Coded Cable with Standard Male Headers
• Ear Clip for Earlobe Heart Rate Measurement
• Velcro Finger Strap
• Transparent Stickers to Protect Sensor

Documents:

• Schematic
• Design Files
• Product Link
• Getting Started Guide
• Arduino Code
• Arduino Code Walkthrough
• Processing Sketch
