SKU:MLE01066

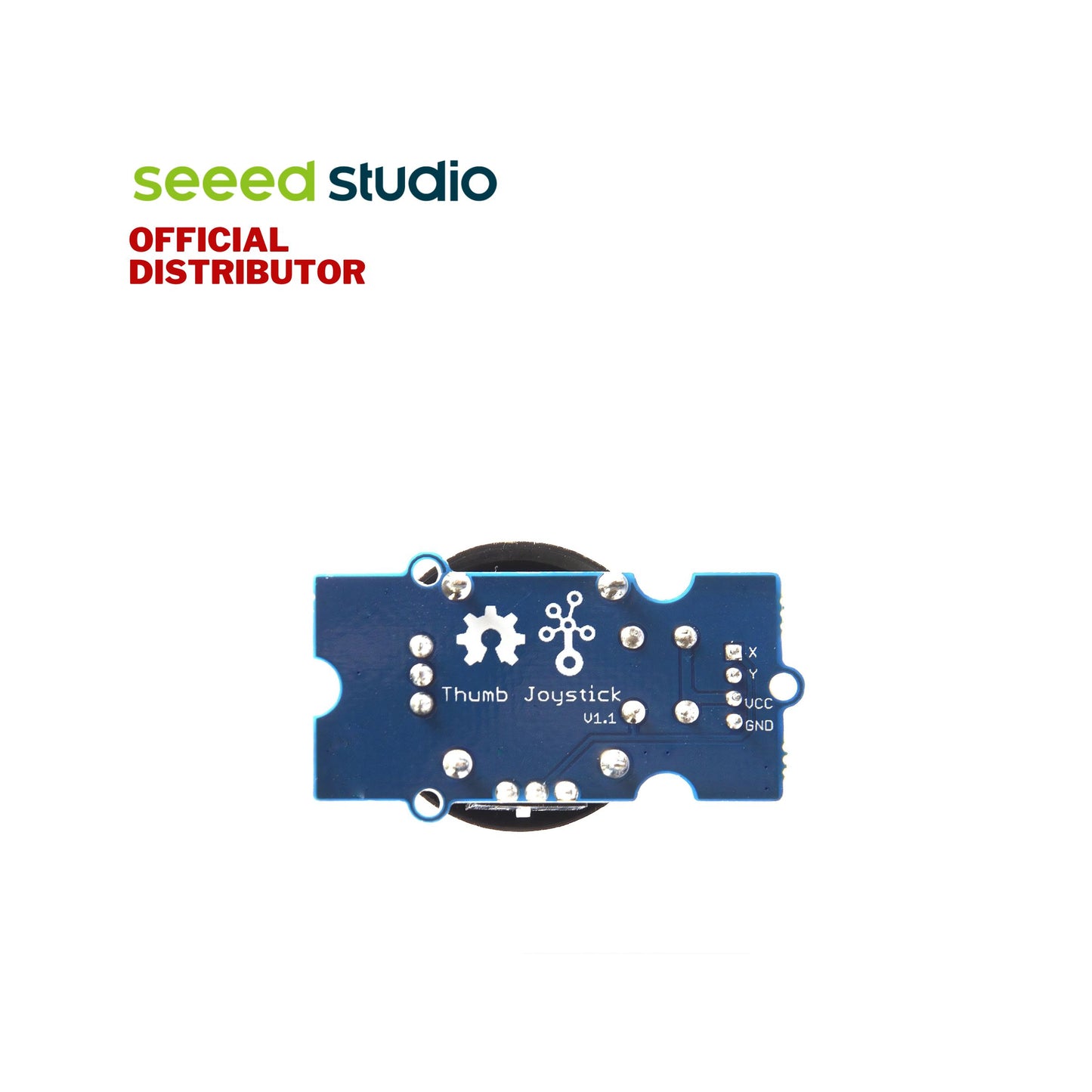

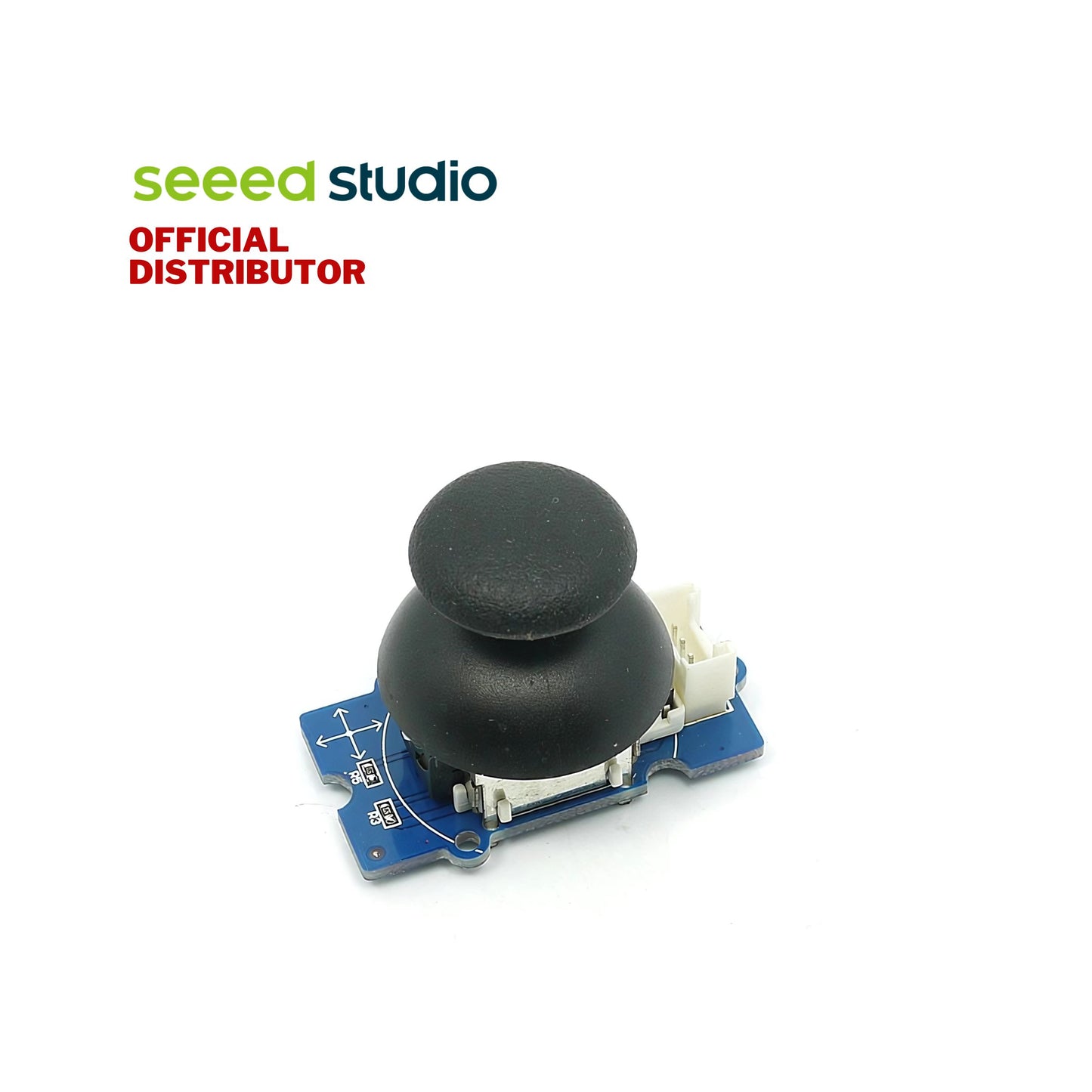

Grove - Thumb Joystick
₱290.00
₱290.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
files/MLE01066.jpg
04:10 AM
Couldn't load pickup availability
Product Description
Description:
The Grove - Thumb Joystick is a Grove-compatible module that is very similar to the 'analog' joystick on PS5 (PlayStation 5) controllers. The X and Y axes are two ~10k potentiometers that control 2D movement by generating analog signals. The joystick also has a push button that could be used for special applications. When the module is in working mode, it will output two analog values, representing two directions. Compared to a normal joystick, its output values are restricted to a smaller range (i.e., 200~800), and only when pressed will the X value be set to 1023, and the MCU can detect the action of pressing.
Features:
Analog Output: Its output values are restricted to a smaller range (i.e., 200~800), and the maximal value will be obtained when the button is pushed.
Supports Wide Voltage: 5V/3.3V Compatible.
Grove Unified Socket: The product ensures "Plug and Play" and could be versatile for various applications.
Specifications:
Weight: 17g
Working Voltage: 5V
Output Analog Value (X coordinate): 206 to 798
Output Analog Value (Y coordinate): 203 to 797
Application:
- Music console
- Game controller
- Remote controller for drones and carts
Documents:
Part List:
1x Grove - Thumb Joystick
1x Grove Cable
