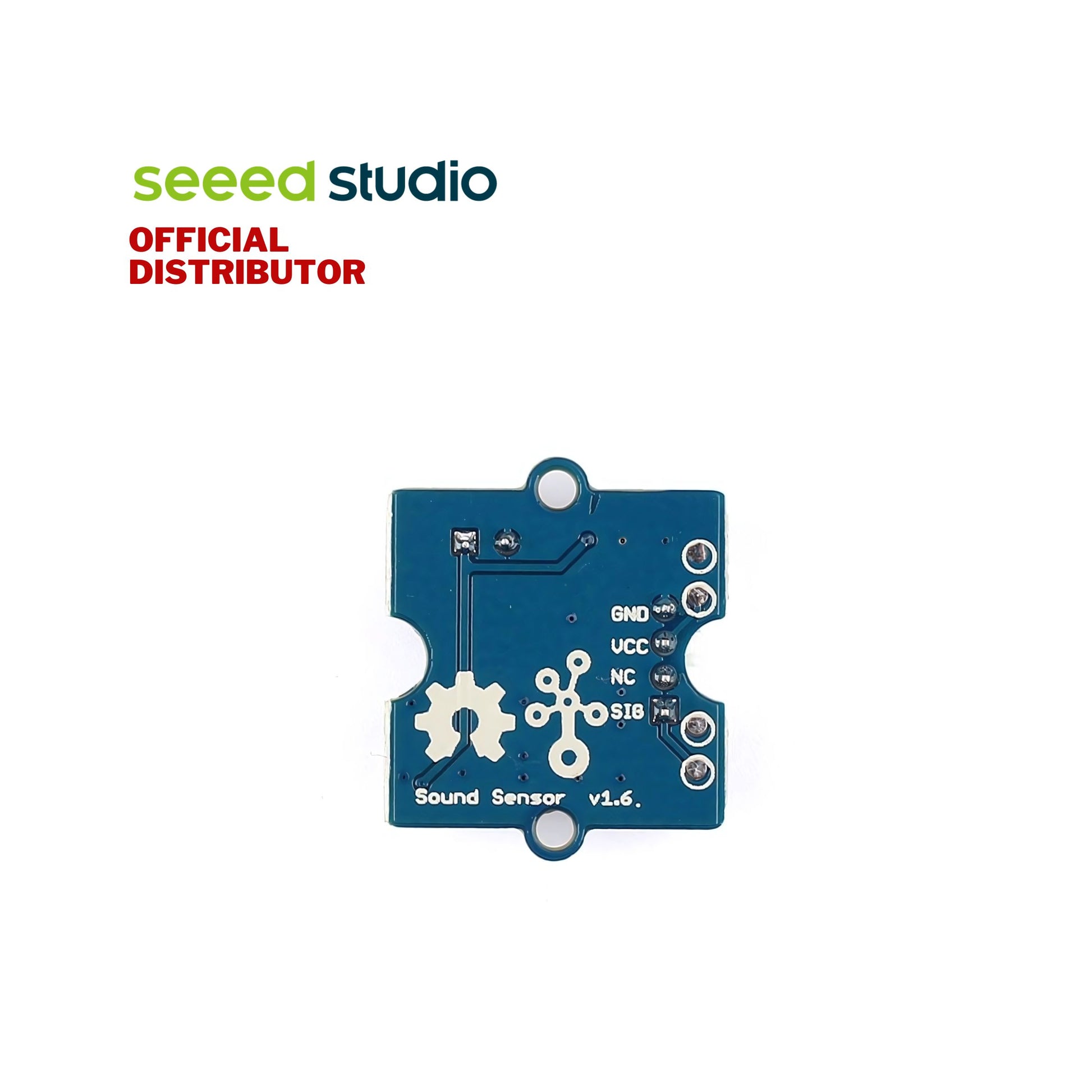

Grove - Sound Sensor
₱379.00
₱379.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
//www.makerlab-electronics.com/cdn/shop/files/MLE01054_medium.jpg?v=1748049594
09:02 PM
Couldn't load pickup availability
Product Description
Description:

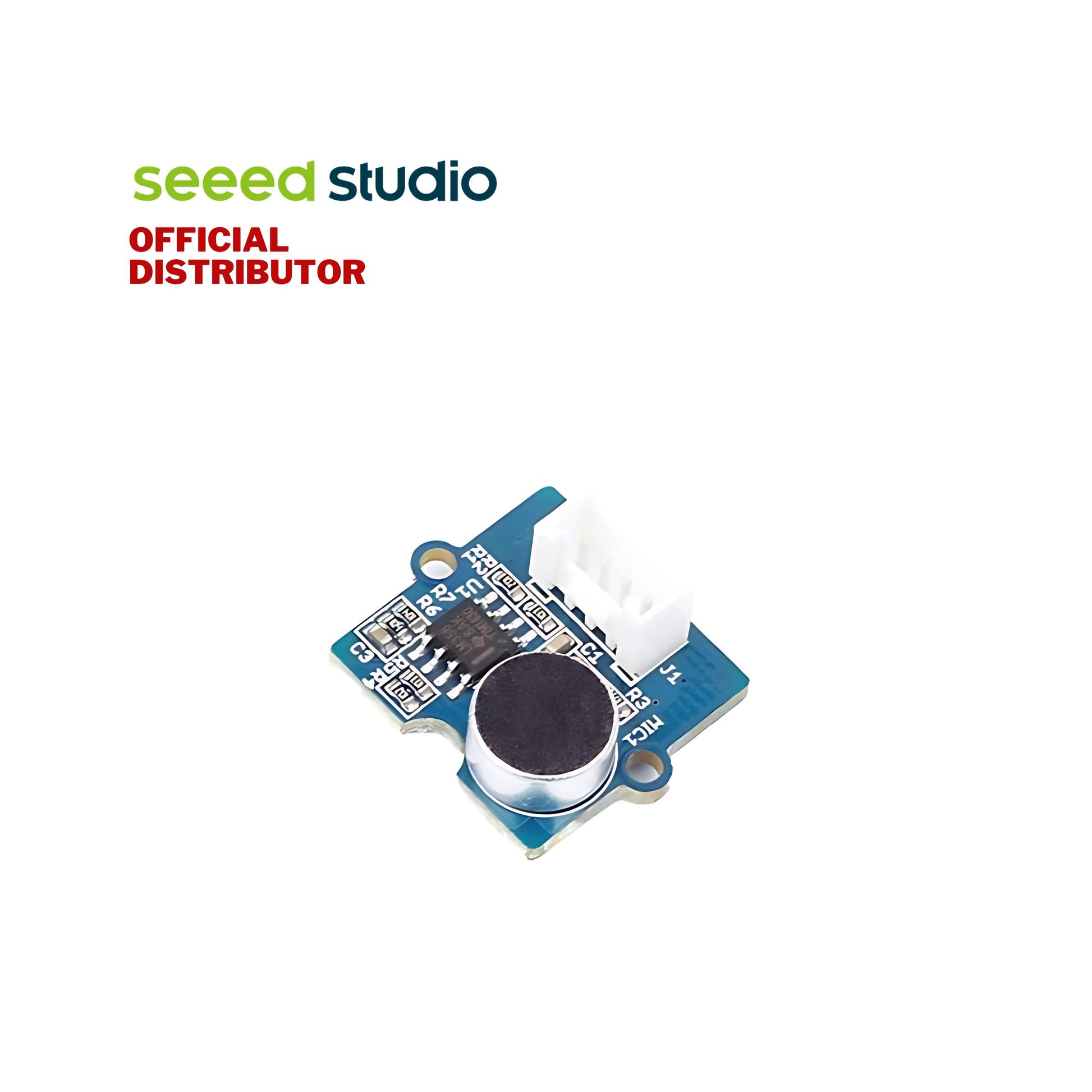

This Grove-Sound Sensor is based on an LM358 amplifier and an electret microphone. It detects the sound intensity of the environment and outputs an analog signal, which is easily sampled and tested by a Seeeduino. It is a simple microphone compatible with many microcontrollers and SBCs like Arduino and Raspberry Pi. It can be used to detect whether there's sound (like the sound of clapping, noise, etc) surrounding or not, and output the sound strength of the environment. This module can easily integrate with logic modules on the input side of Grove circuits. With its tiny size and high performance, it is perfect for your Raspberry Pi audio detection project and interactive project.
Features:
Upgraded Functionality: Based on LM358-Dual, 36-V, 1.2-MHz, 3-mV offset voltage operational amplifier with -40°C to 85°C operation.
Wide Supply Voltage Range: In the range of 4V - 12V.
Easy to Read: Can easily integrate with logic modules on the input side of Grove circuits, and its output is analog.
Grove Unified Socket: The sensor ensures "Plug and Play" and could be versatile for various applications.
Specifications:
Dimensions: 24mm x 20mm x 9.8mm
Weight: G.W. 9g
Operating Voltage Range: 5 V
Operating Current (Vcc=5V): 4~5 mA
Voltage Gain (V=6V, f=1kHz): 26 dB
Microphone Sensitivity (f=1kHz): 52-48 dB
Microphone Impedance: 2.2k Ohm
Microphone Frequency: 16-20 kHz
Microphone S/N Radio: 54 dB
Amplifier: LM358
Microphone: Electret Condenser Microphone
Application:
- Simple microphone
- Sound/noise detector
- Smart home: Sound control lamp
- Sound interactive device

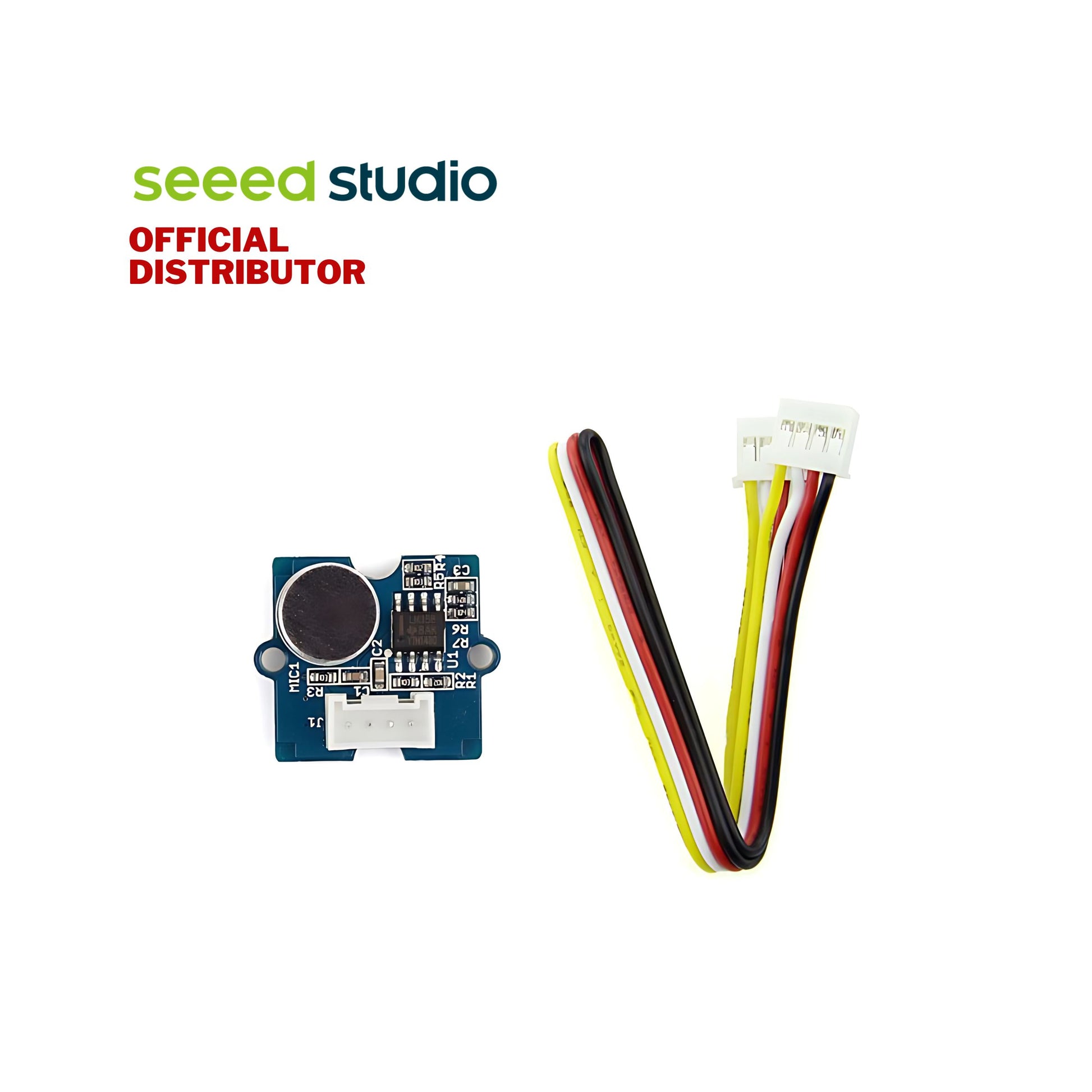

Part List:
1x Grove - Sound Sensor
