SKU:MLE01061
Grove - Line Finder v1.1
₱209.00
₱209.00
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Loading locations...
files/MLE01061.jpg
04:09 AM
Couldn't load pickup availability
Product Description
Description:
The Grove - Line Finder v1.1 is designed for a line-following robot. It has an IR-emitting LED and an IR-sensitive phototransistor. It can output a digital signal to a microcontroller so that the robot can follow a black line on a white background or vice versa.

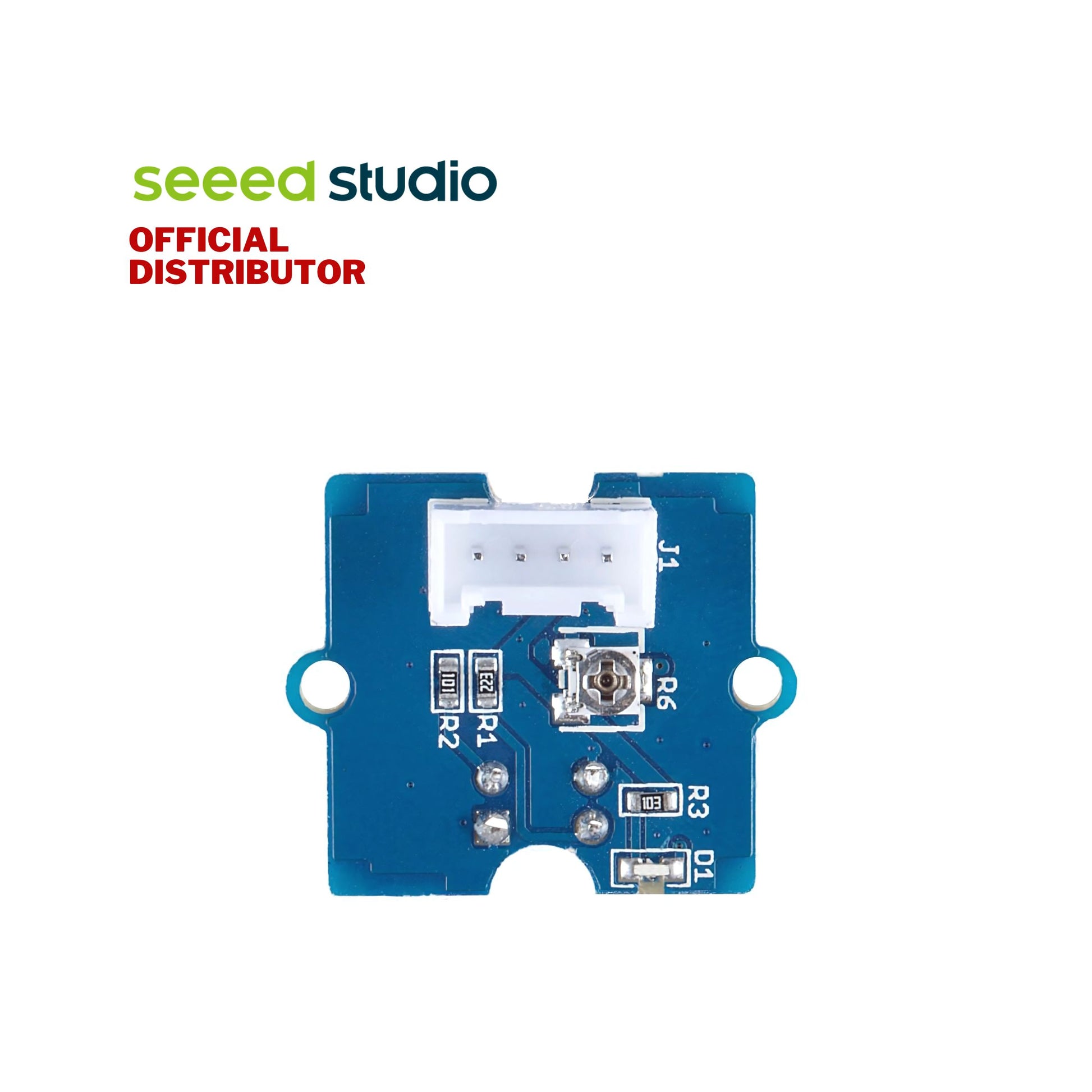

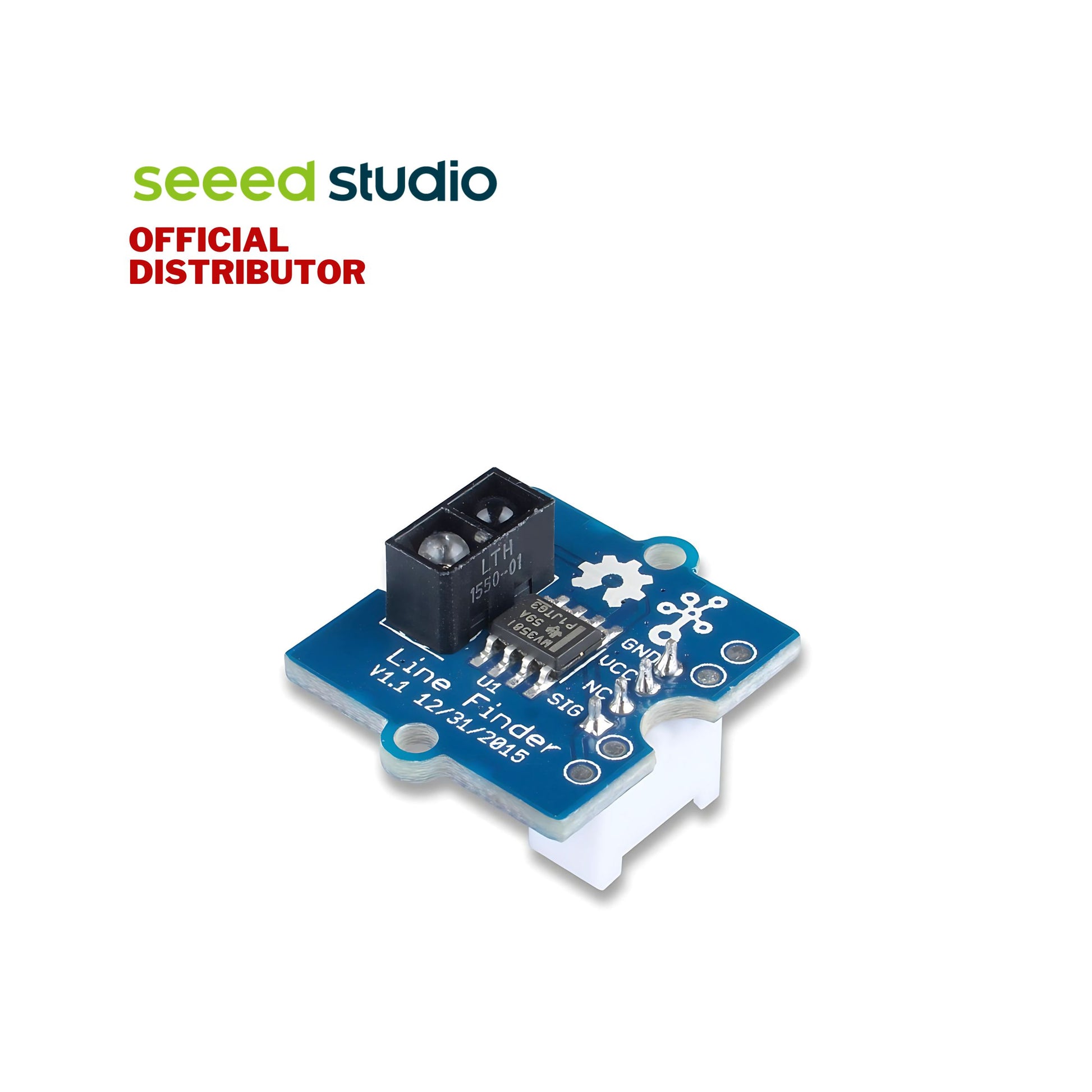

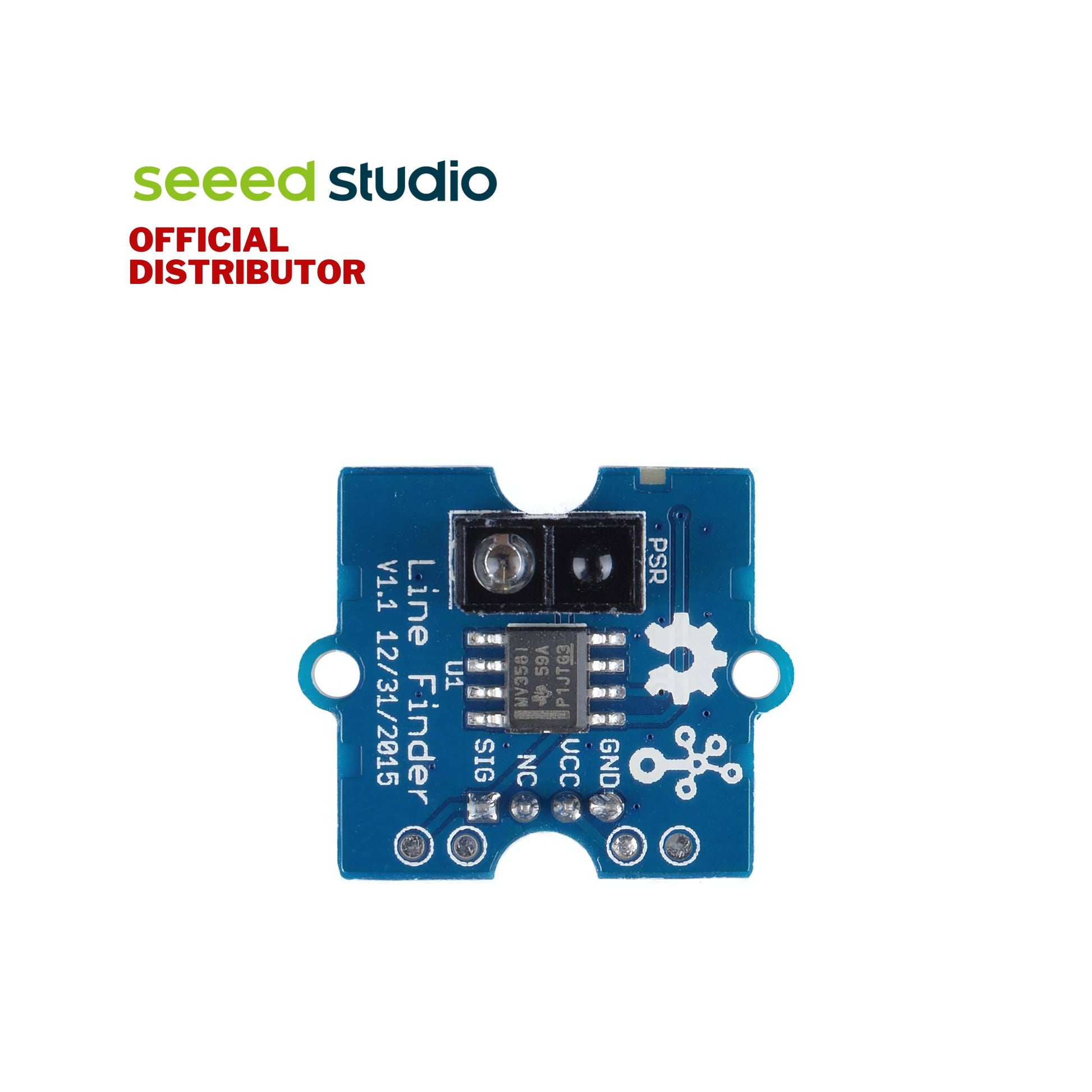

Those eye-like sensors on the board are IR-emitting LEDs and sensitive phototransistors. When the phototransistor detects the reflected infrared light from the IR-emitting LED, it will output a digital signal, which changes from HIGH to LOW. Most automated robotic projects start with a line-following robot. Grove - Line Finder v1.1 is designed to achieve this task easily and quickly.
Features:
Integrated Function: An IR indicator LED and an IR-sensitive phototransistor.
Digital Output: A digital signal will change from HIGH to LOW. It is high when black is detected, and it Is Low when white is detected.
Easy to Use: It is compatible with the Grove port, so you just plug it in and play.
Flexible Detection: The detection range is adjustable.
Specifications:
Power Supply: 5V DC
Digital Output Mode: TTL (High when black is detected, Low when white is detected)
Connector: 4-pin Buckled Grove interface
Comparator: LMV358
Photo Reflective Diode: RS-06WD
Dimensions: 20mm x 20mm
Weight: 8g
Application:
- Delivery Robotics
- Mini Toy Car
Part List:
1x Grove - Line Finder v1.1
