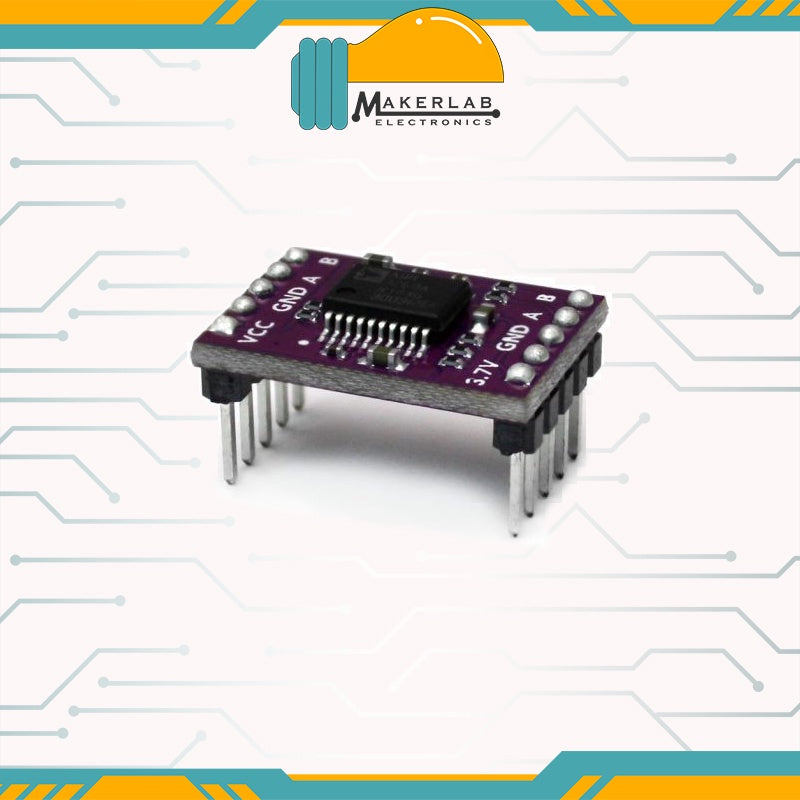

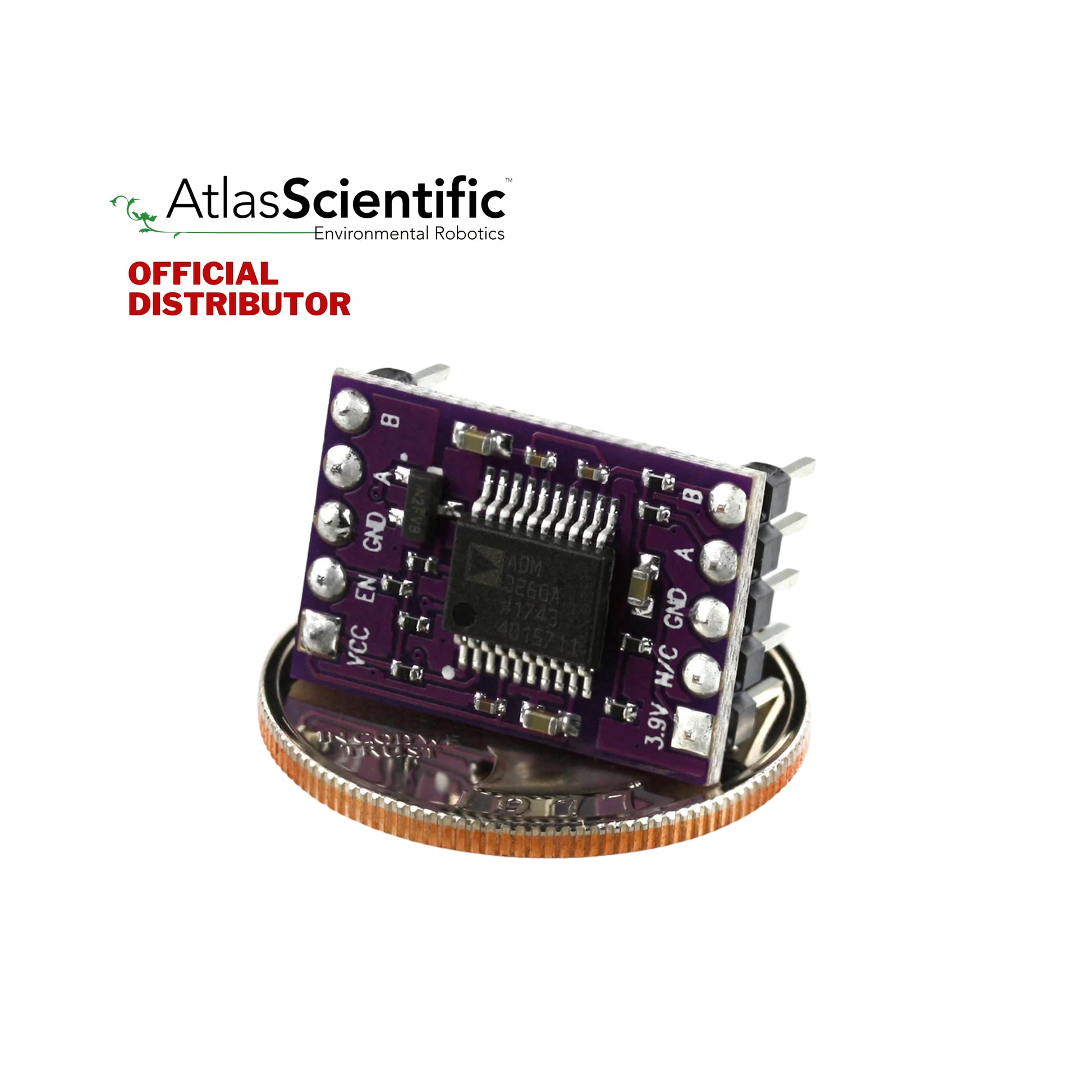

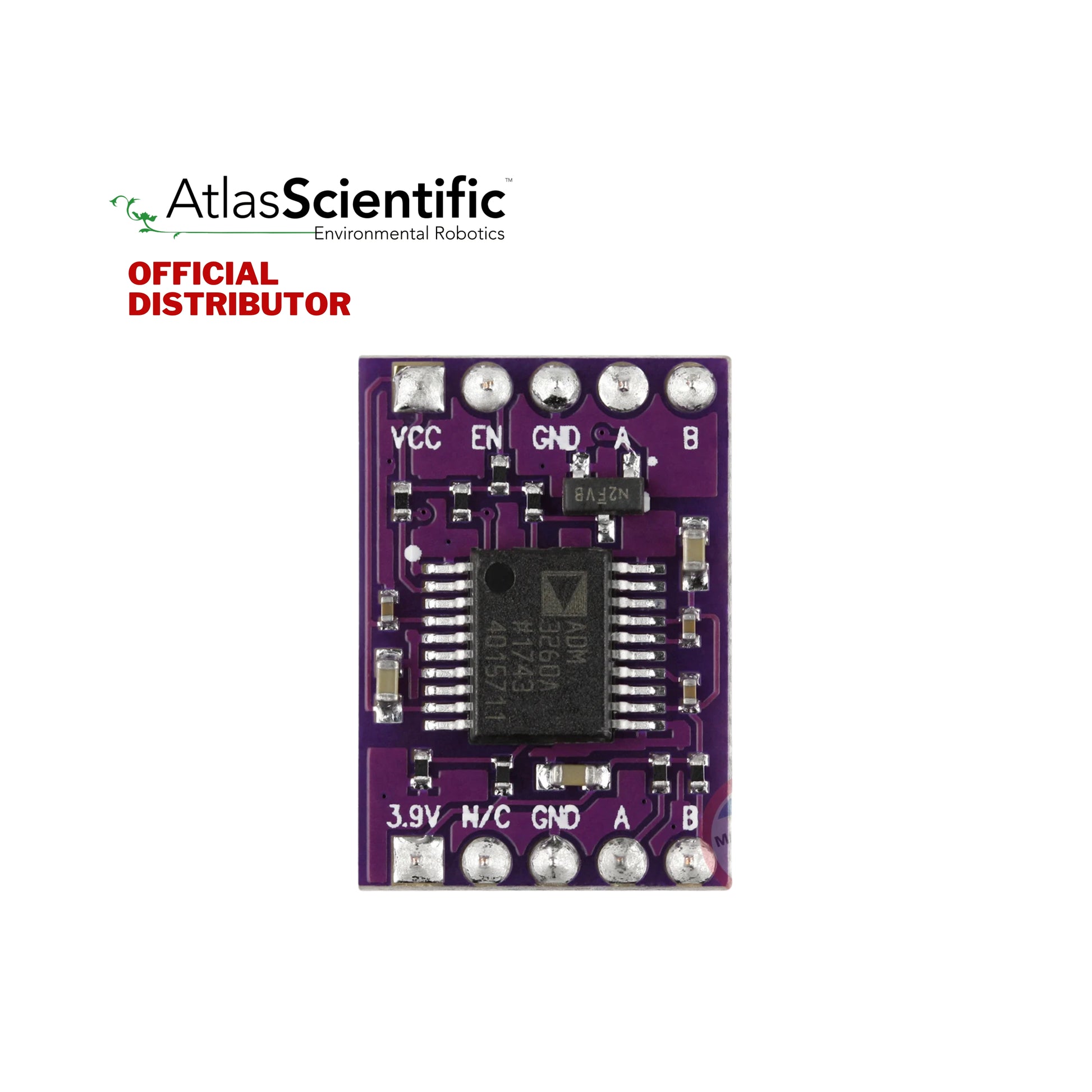

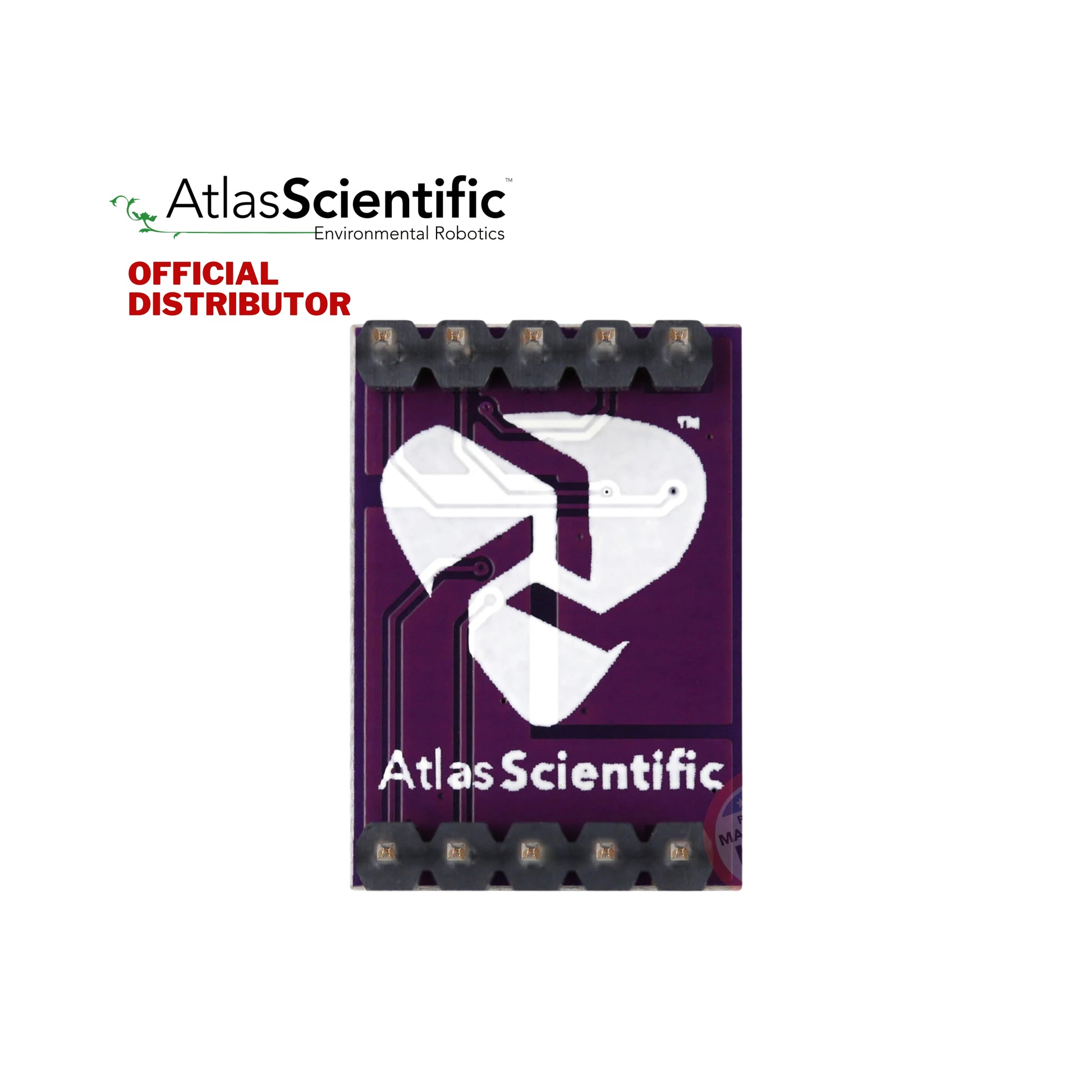

Basic EZO™ Inline Voltage Isolator

Technical Specification:

• Voltage Input: 3.0V - 5.0V
• Data Input: UART 12C and SMBus
• Max Data Rate: 1MHz
• Current Consumption: 5V - 16.3 mA; 3.3V - 20 mA
• Output Voltage: 3.7V ± .07
• Circuit Dimensions: 13.97mm X 20.16mm (0.55" X0.79")
• Weight: 3.0V - 5.0Weight: 1.76 g
