Description:

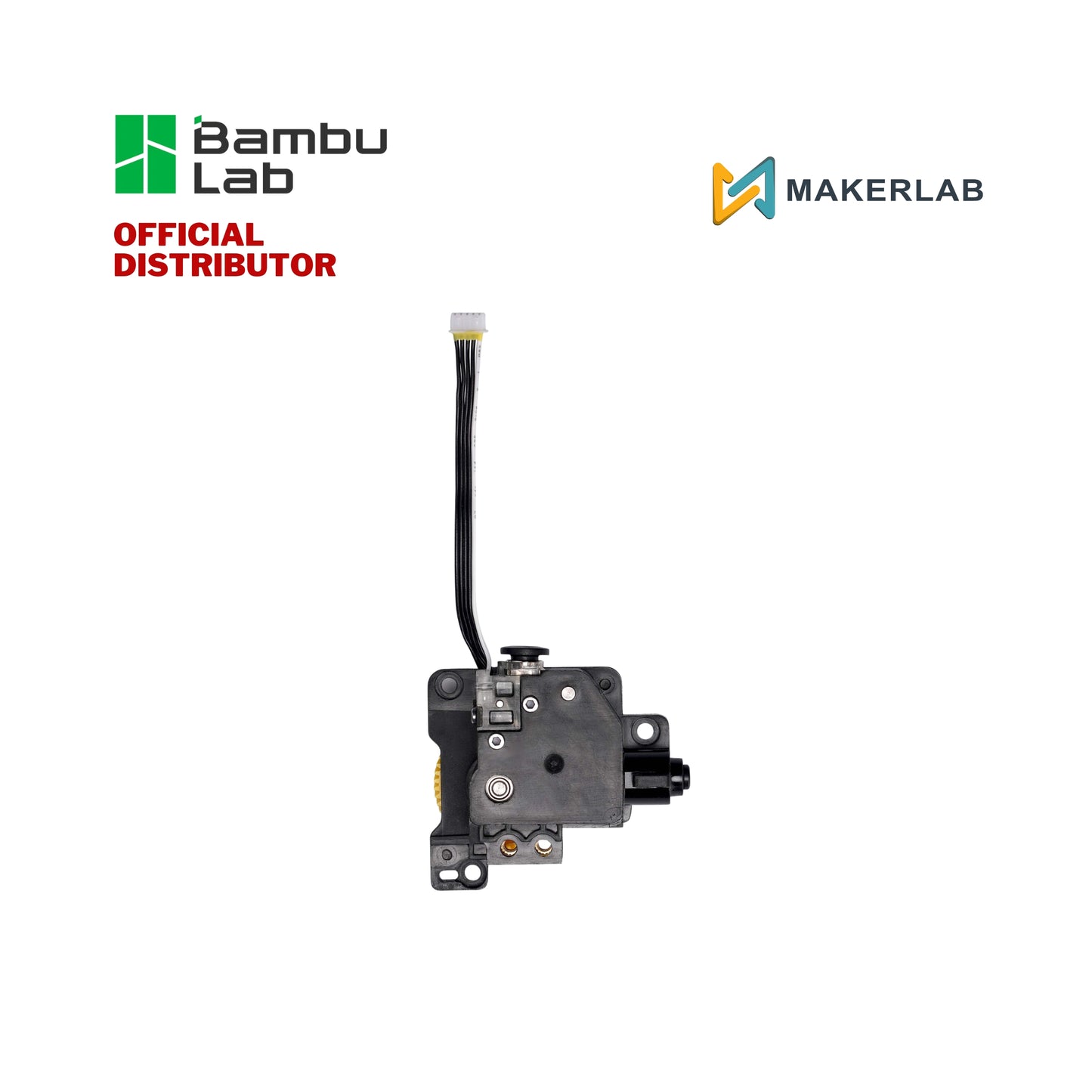

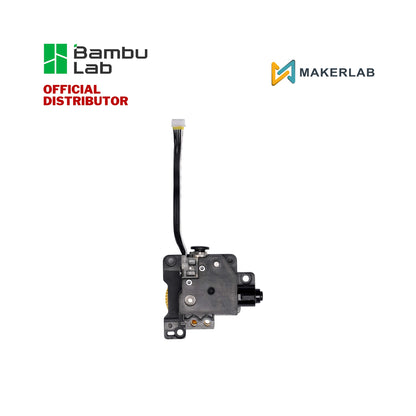

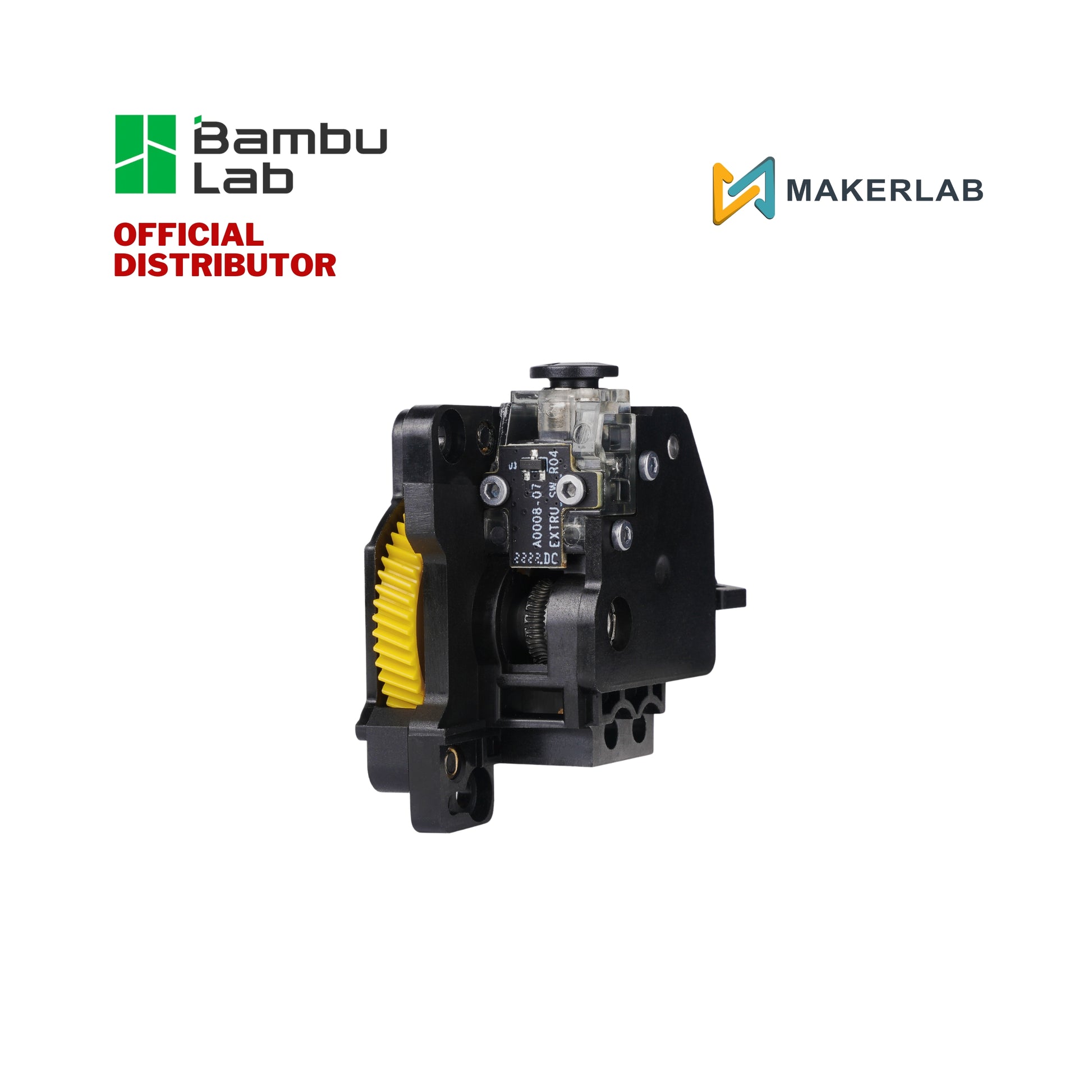

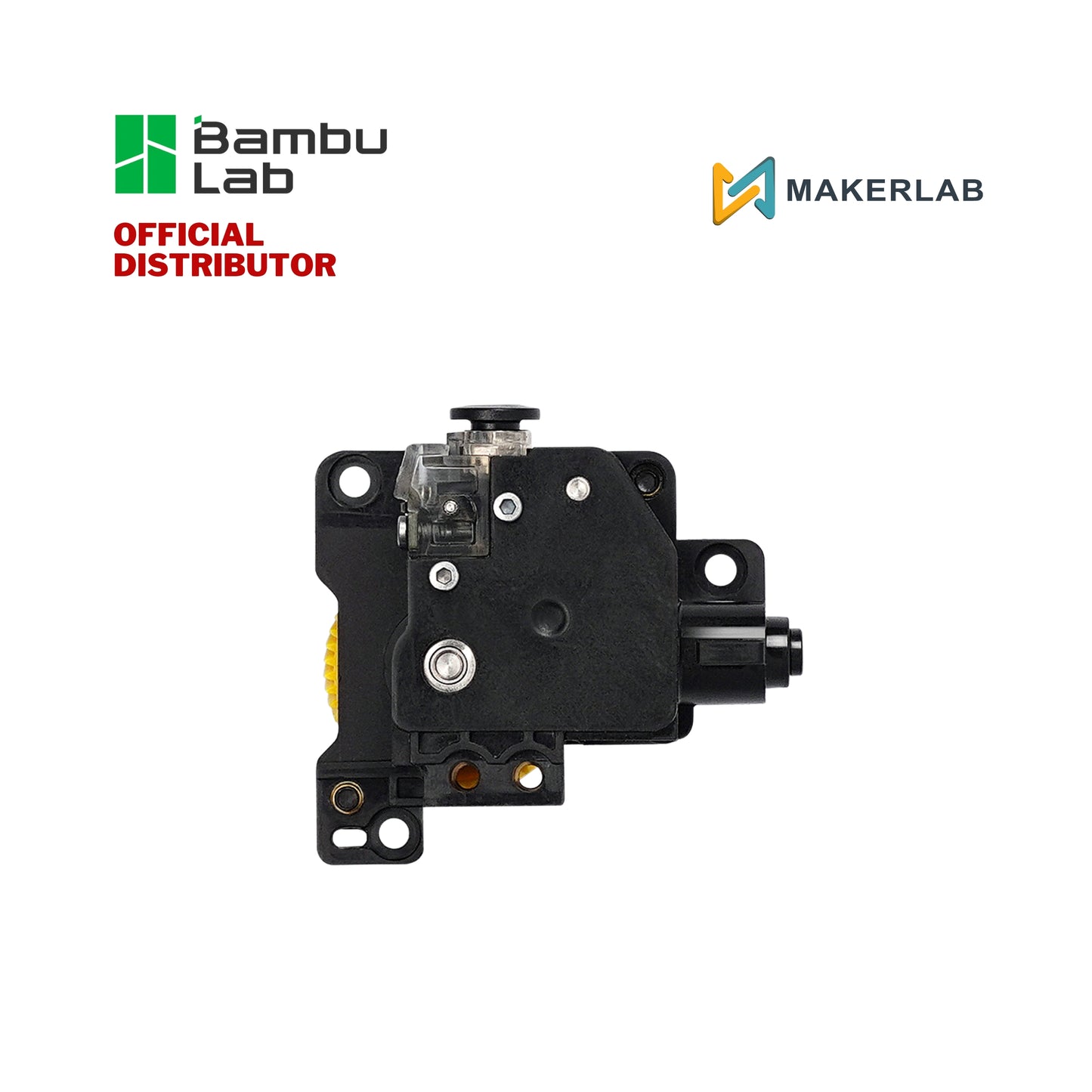

The hardened steel extruder unit is equipped with double gears made of hardened steel, which provides increased extrusion force, prevents slippage, and enhances abrasion resistance. These gears enable the extruder unit to handle tough engineering filaments such as carbon fiber nylon and glass fiber nylon.
In addition, the extruder unit includes a sensor that supports filament break detection, which can help prevent print failures and improve overall printing efficiency.
Features:
HRC58-62 Hardened Steel Gears: Provides extreme wear resistance against abrasive particles found in industrial-grade filaments.
Dual-Gear Drive: Features two interlocking gears to grip the filament from both sides, preventing slippage and ensuring high-precision flow control.
Integrated Filament Sensor: Includes the sensor board and magnet to detect "run-out" or clogs, pausing the print automatically to save your work.
Optimized for High Speed: Balanced gear ratio allows the motor to feed filament fast enough to keep up with the X1's 500mm/s travel speeds.
Installation:
Learn more about the replacement of hardened steel extruder unit for X1 Series on
Bambu Lab Wiki.
In the Box:
Specifications:
Compatibility: X1C
Reduction Ratio: 9 : 53
Materials: Plastic, Metal
Supported Filament Diameter: 1.75 mm
Supported Filaments: PET-CF, PAHT-CF, PA6-CF, PLA-CF, PETG-CF, PLA, PETG, ABS, ASA, PC, TPU
Packaging Weight: 50 g
Packaging Size: 60*60*30 mm
