Description:

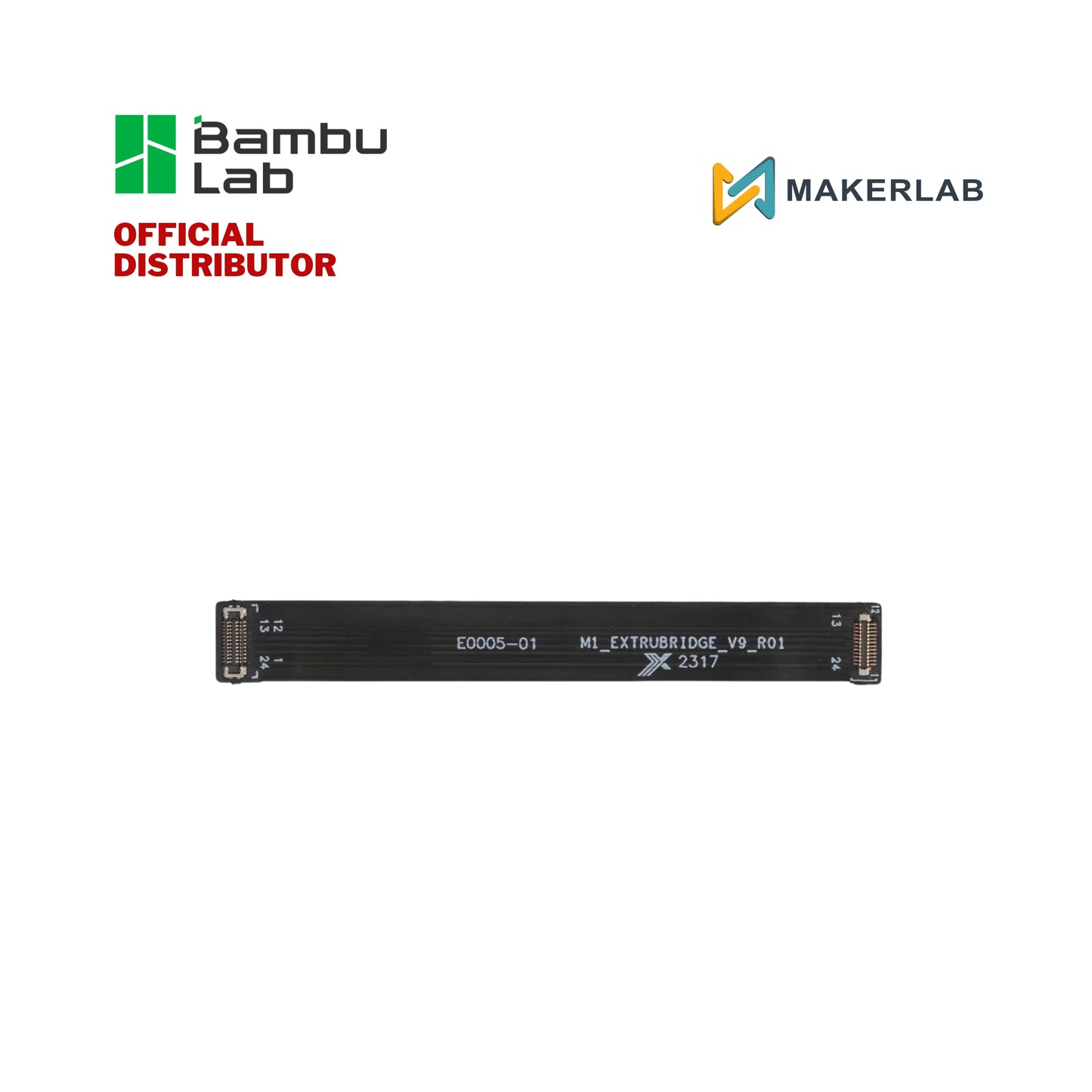

The TH Board Connect FPC is a specialized multi-lane ribbon cable engineered to withstand the extreme accelerations and constant movement of the X1's CoreXY motion system. This specific cable connects the Toolhead Board to the interface components within the gantry.
As an "Exclusive" part for the X1 Series, it is designed to carry high-speed signals for the Micro-Lidar, the chamber camera interface, and the toolhead sensors. Due to the high-frequency flexing it undergoes during printing, this FPC is built with a high-durability polyimide substrate to prevent trace fracturing and signal degradation.
Features:
-
High-Flex Durability: Optimized for millions of bending cycles at accelerations of up to 20,000 mm/s.
-
Precision Signal Integrity: Designed with controlled impedance to support the sensitive data requirements of X1's Micro-Lidar system.
-
X1 Exclusive Fit: Feature-specific length and pin-out configuration that is not compatible with the P1 or A1 series.
-
Low Profile & Lightweight: Minimizes the moving mass of the toolhead assembly, helping to reduce ghosting and ringing at high speeds.
-
Reinforced Connectors: Features stiffened ends for secure insertion into the ZIF (Zero Insertion Force) or locking headers on the TH board.
Specifications:
Compatible Printer: Bambu Lab X1 Series
Cable Type: FPC (Flexible Printed Circuit)
Substrate Material: Polyimide (Kapton)
Pin Configuration: High-density multi-pin
Function: Data/Signal transmission for Toolhead electronics
