Aluminum Water Cooling Block Heatsink for Peltier TEC1-12706

This Aluminum Water Cooling Block excel at delivering cooling to concentrated heat sources such as Peltier Elements and for delivering cooled fluid into remote or compact locations where the cooling assembly itself cannot be located. The basic operation is simple: fluid flows in one tube, it is cooled, and then it flows out the other tube. An external pump is required, and typically small DC magnetic-drive pumps are used to minimize the amount of pump power (heat) that is imparted to the fluid.

It is also use with TEC1-12706

Features

• Internal flow channel extrusion forming
• Brazing parts into a whole
• Leak rate of less than 5X10-6 mbar.l/s parts
• Internal fin thickness 0.5MM
• Processing: vacuum aluminum brazing
• Surface treatment: silver oxidation
• Applicable to computer CPU water, industrial inverter driver, laser head cooling, industrial control cabinet cooling
• Sizes:
  • 40 (L) x 40 (W) x 12 (H) MM

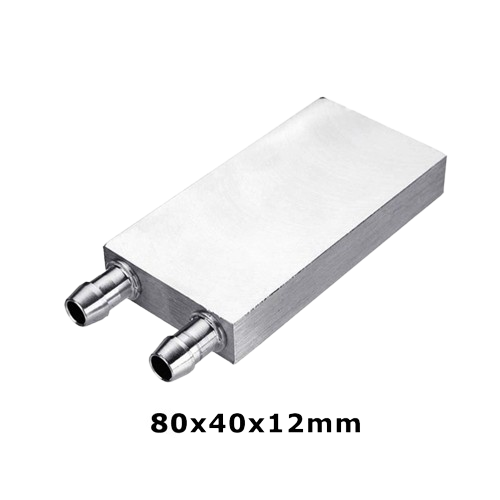

  • 80 (L) x 40 (W) x 12 (H) MM

Package included:

• 1 x Aluminum Water Cooling Block
