SKU:MLE00409

Stepper Motor Nema 17 4500g-cm

₱800.00
₱800.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Or 3 months for only ₱1,000 with . Learn More.
In stock

About the Product

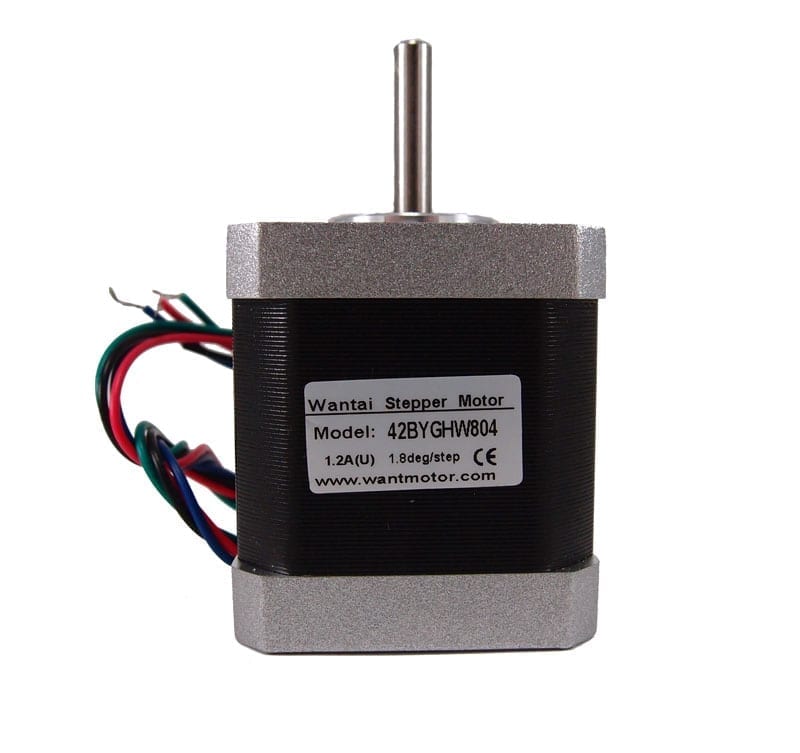

Stepper Motor Nema 17 4500g-cm

Stepper motor a type of DC motors that move in increments or steps, they move at a known interval for each pulse of power. These pulses of power are provided by a motor driver and is referred to as a step. As each step moves a known distance it makes them handy devices for repeatable positioning. Stepper motors are usually used on CNC Machines such as 3D Printers, Laser Cutters, CNC Routers.

To utilize the full power of a stepper motor you will need a dedicated stepper motor driver such as DRV8825.



Technical Specification

Form Factor Nema 17
Step Angle 1.8 degrees
Motor Length 48 mm
Rated Voltage 3.6 V
Rated Current 1.2 A
Phase Resistance 3 ?
Phase Inductance 5 mH
Holding Torque 4500 g-cm
No. of Lead Wires 4
Rotor Interia 68 g-cm²
Detent Torque 280 g-cm
Motor Weight 0.36 kg

Wiring Diagram

Mechanical Dimension

The following diagram shows the dimensions in mm.


Applications

These are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where they are often found:

  • Printers
  • CNC machines
  • 3D printer/prototyping machines (e.g. RepRap)
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives
