SKU:MLE02322
Creality Wash and Cure Machine UW 01
Couldn't load pickup availability
Share
About the Product

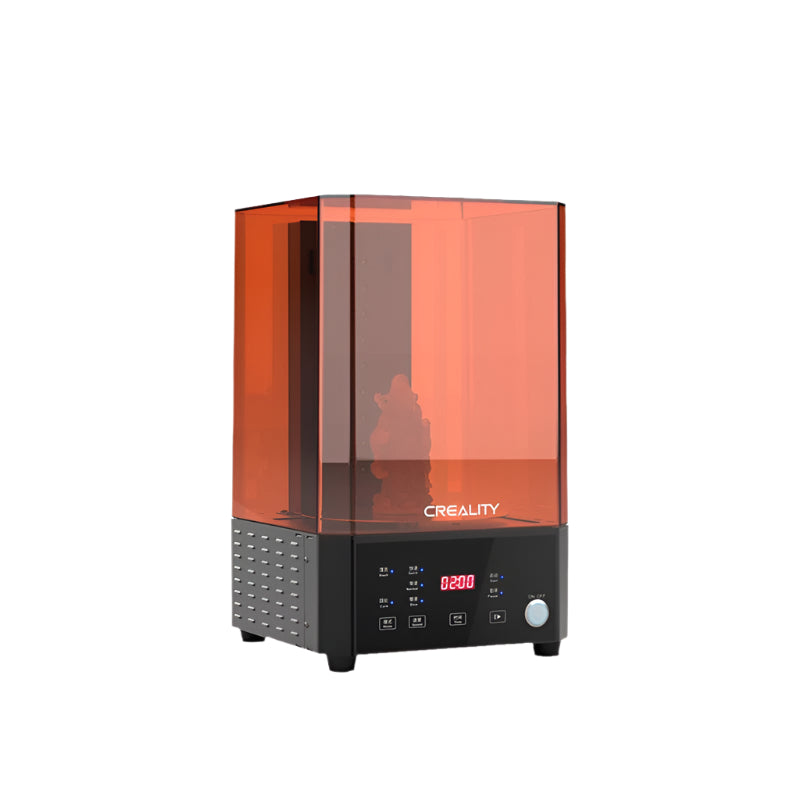

Creality Wash and Cure Machine UW-01
Features:
- Dual-band UV light source
- Magnetic 360° rotatable platform
- Large-size washing container
- Adjustable three-gear speed
- 2-90min optional
- HD touch button
Adjustable three-gear speed and 2-90min optional
With a three-gear speed mode, it includes washing and curing; The washing and curing time has 2-90min optional. Delicate models come from the curing and washing.
Strong wash mode:
1, Flexible wash method: The model can be washed separately in the washing basket or together with bottom plates.
2, Large size sealed washing container: the UW-01 Washing and Curing Machine supports larger size models for cleaning; With a sealed container and lid, it avoids cleaning solution volatilization and also stores the cleaning solution for the repeated use.
3, Self-adjustable bracket: The water level to wash the model depends on the washing container size and model size.
Cure mode:
1. Double-row, and Double band UV lamp beads: With built-in LED beads(18 pieces of UV LED lights), the UW-01 Washing and Curing Machine is compatible with most resin printers; The double row 9-bead design with a higher irradiated area realizes quick curing and even irradiation for the larger model.
2. 360° specular reflections curing rotating platform: 360° curing tray with magnetic force and reflective mirror make full use of the light source, which cures the model all the angles.
3. Remove the machine core, stop working automatically: Once the machine cover is removed during the curing process, the UW-01 Washing and Curing Machine will immediately suspend the curing, which avoids light source glare and reduces light pollution.
Product Parameters:
- Model: UW-01
- Machine: Washing and Curing Machine
- Control method: Touch button, LED indicator
- Rated power: 96W
- Input voltage: 24V
- Curing and washing time: 2-90min
- Washing size: 170(L)x 120(W)x 160(H)mm
- Air-drying and curing size: 225x225x370mm
- Package size: 298x297x505mm
- Machine weight: 6.5KG
