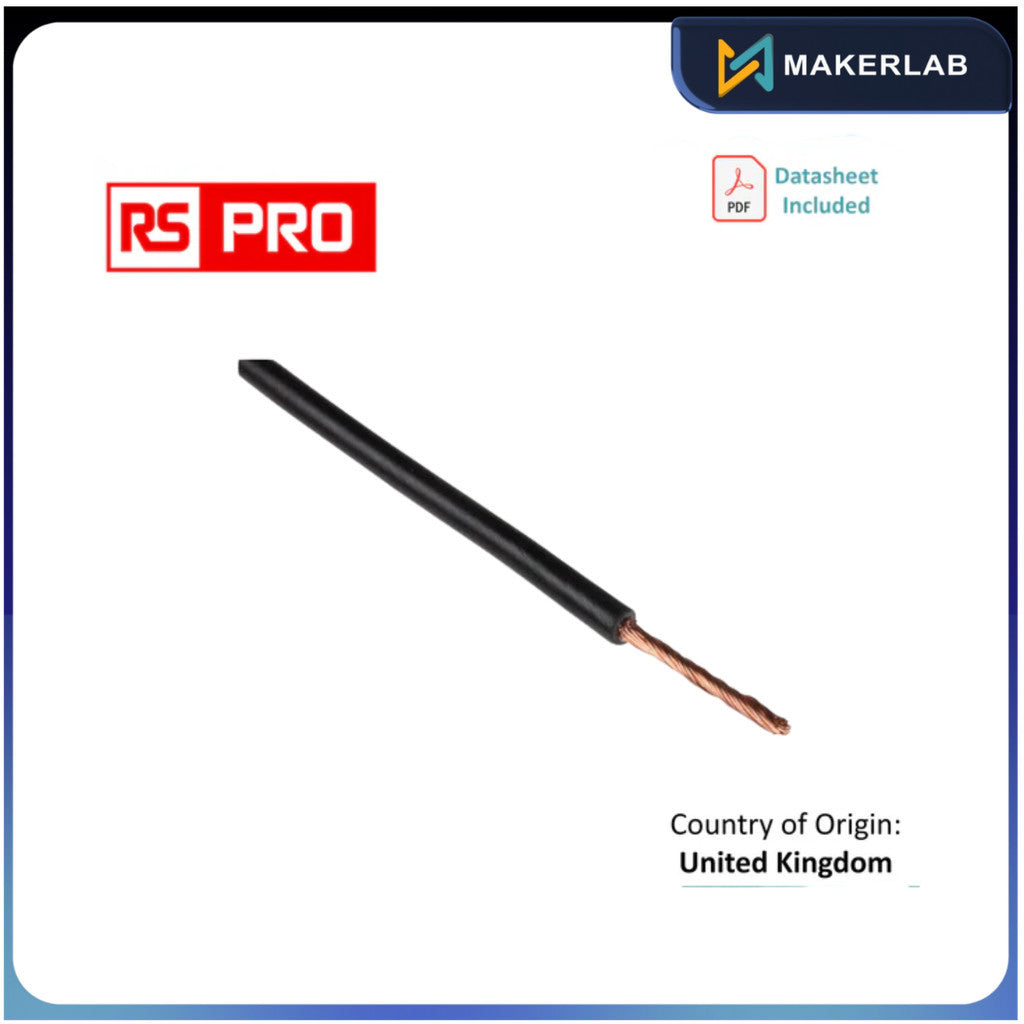

RS PRO Black 1.5 mm² Hook Up Wire, 15 AWG, 30/0.25 mm, 100m, PVC Insulation

A plain copper stranded conductor covered by a PVC insulated sheath. These flexible wires are intended for use with electrical power, lighting and internal wiring.

• Flexible class 5 conductors
• BS6004 Conductors
• Plain annealed copper conductors
• Harmonised code H05V-K

This equipment wire can be applied to endless applications. These can range from domestic household appliances, industrial equipment and factory machine. Due to the reliability of the copper conductors, these types of wires are usually the preferred choice with any internal wiring system. As an example, these are some common places you would find equipment wire:

• Circuit boards
• Computer internals
• Mobile phones and other battery-operated devices
• Vehicle lights

Hook up wire, or copper wire/equipment wire as it's also called is primarily used for low voltage and current applications. Copper strands are sheathed by a cover (usually PVC) and act as the conductor of electricity to power its target. Frequently found within everyday household and workplace appliances, hook up wire is a common occurrence. If a device has multiple wires to operate, hook up wire will usually be installed with different sheath colours on their respective terminals. This is to avoid the confusion of a "spaghetti junction" of wires.

Copper is the go-to metal for nearly all cable. Due to the excellent conduction of electricity, it provides. Circuit boards, telephone lines, power cables (including multicore) all use copper as the solid core interior of their wire.

Attribute	Value
Cross Sectional Area	1.5 mm²
Sheath Colour	Black
Cable Shape	Single Core
American Wire Gauge	15 AWG
Core Strands	30/0.25 mm
Length	100m
Insulation Material	PVC
European Harmonised Code	H07V-K
Outer Diameter	3.4mm
Voltage Rating	750 V
Maximum Operating Temperature	+70°C
Conductor Material	Annealed Copper
Standards Met	BS 6004, BS EN 50525-2-31, RoHS Compliant
Series	2491X
Insulation Wall Thickness	0.7mm
Shield Type	Unshielded
Number of Strands	30
