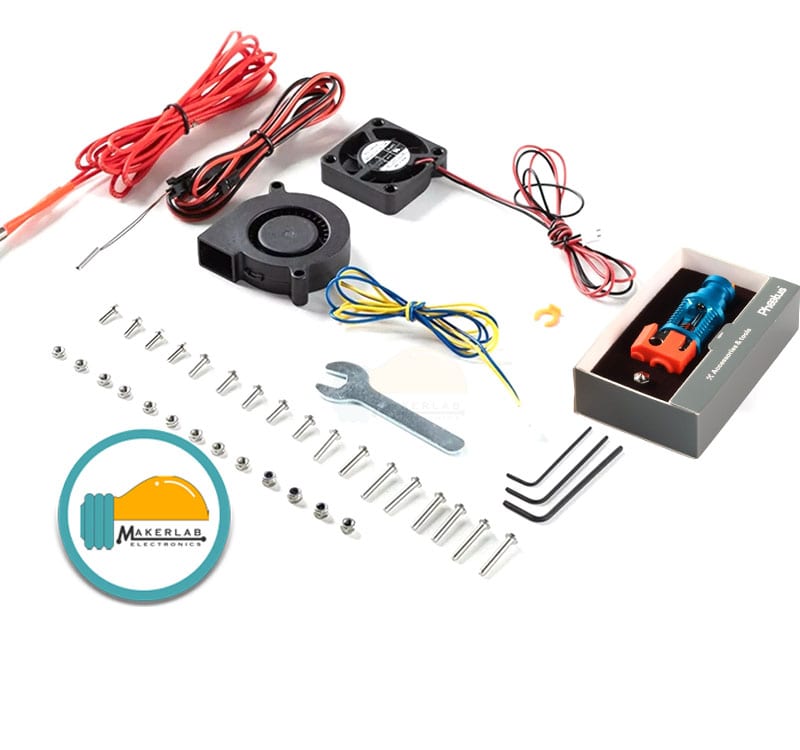

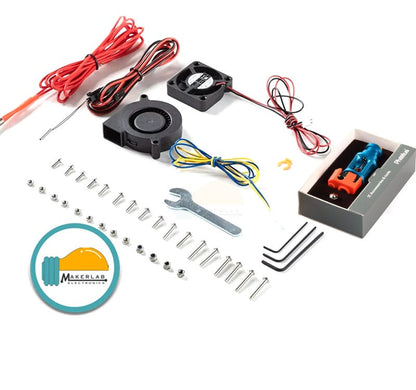

Phaetus Dragon V6 Hotend Kit High Fow Edition Creality Full Metal Nozzle Kit

Product Description:

These nozzles are compatible with the Dragon Hot-End. All-metal kit, with overall high temperature resistance up to 500 ?. Heat break with an ultra-thin wall thickness as thin as 0.1 mm, realizing an excellent thermal insulation. Increased rigid support structure guarantee the heat break remaining intact under the impact of external force. Integral frame rigid structure makes nozzle replacement more convenient without grasping the heat block. The inner hole roughness of nozzle and heat break Ra 0.4, which allow a more smooth movement of filament, resulting a higher resolution prints. ST and HF version are with the same overall dimension, which realizes a zero barrier for interchangeability. The hot-end is mainly composed of copper alloy material which has the advantage of faster heating and better heat dissipation. Flexible combined structure design makes a strong compatibility.

Compatibility:

• With V6 adapter:
• All V6 Hot-End compatible interfaces
• Prusa I3 MK3 / MK3S
• Titan Extruder
• BMG Extruder

Mounting brackets for different printers:

• Prusa I3 MK3/MK3S mount bracket STL: https://www.prusa3d.com/prusa-i3-printable-parts/
• Creality CR-10, MicroSwiss, E3Dv6 / Volcano, Tevo Tornado / Tarantula: https://www.thingiverse.com/thing:2759439
• Flow rate on HF is around 35~38mm³/s
• Size of the hole to the heat tube and sensor: HeatTube: 6.0mm Thermistor: 3.2mm +- 0,05 mm
